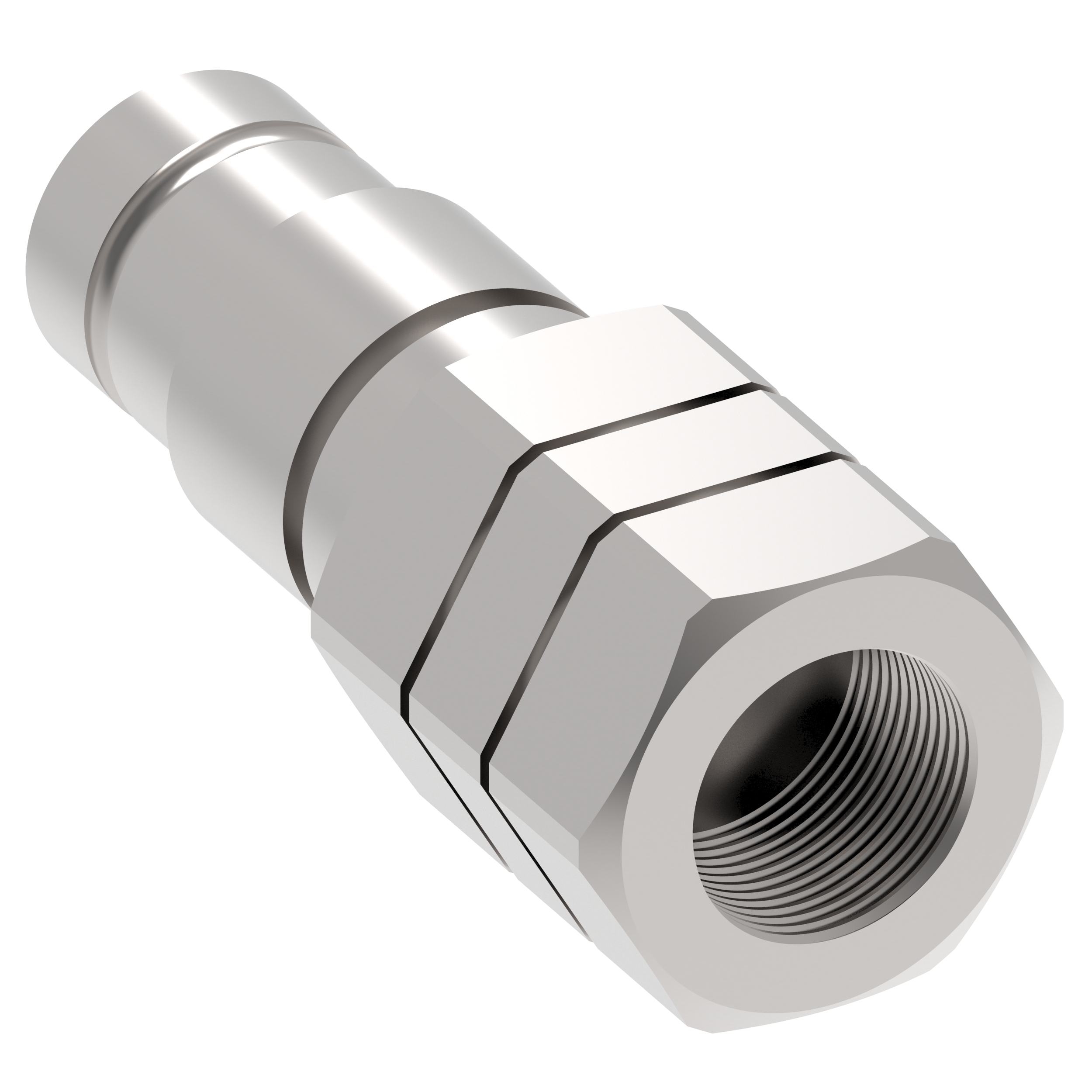

1/2-14 NPT Flat Face Connect Under Pressure Quick Disconnect

Item Specifications

• Air Inclusion
  0.006 ml-cc
• Body Size
  3/8"
• Body Type
  Plug
• Burst Pressure Connected (psi)
  20,300 PSI
• Connect Under Pressure
  Yes
• Dimension A
  2.89"
• Dimension B
  0.74"
• Dimension C
  1.55"
• Dimension D
  2.28"
• Elastomer
  NBR+AU
• Fluid Loss (ml-cc)
  0.010 ml-cc
• Force To Connect
  31.50 Lbs
• Hex
  1.41"
• ISO Type
  ISO 16028
• Material
  Steel
• Media
  Hydraulic
• Plating
  Dura-Kote
• 1/2"
• Quick Disconnect Type
  Flat Face
• Rated Flow (GPM)
  10.60 GPM
• Sleeve Lock
  No
• Thread Gender
  Female
• Thread Size
  1/2-14
• Thread Type 1
  NPT
• Valved
  No
• Working Pressure Maximum (psi)
  5,800 PSI
