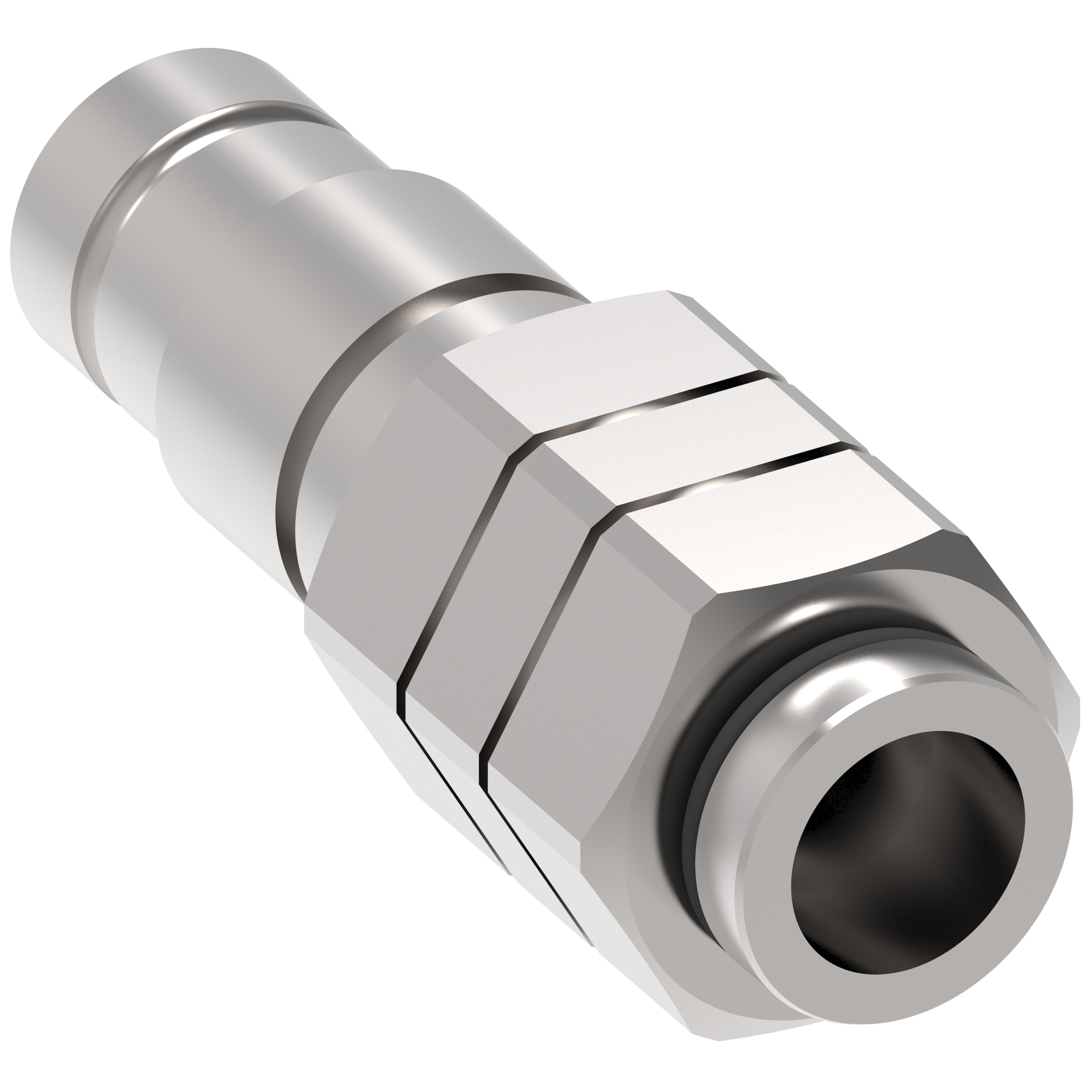

9/16-18f UNF SAE J 1926-2 Flat Face Push-to-connect Quick Disconnect

Item Specifications

• Air Inclusion
  0.006 ml-cc
• Body Size
  3/8"
• Body Type
  Plug
• Burst Pressure Connected (psi)
  20,300 PSI
• Connect Under Pressure
  No
• Dimension D
  2.50"
• Dimension E
  0.78"
• Dimension F
  1.06"
• Dimension G
  1.90"
• Elastomer
  NBR+AU
• Fluid Loss (ml-cc)
  0.010 ml-cc
• Force To Connect
  31.50 Lbs
• Hex
  0.94"
• ISO Type
  ISO 16028
• Material
  Steel
• Media
  Hydraulic
• Plating
  Dura-Kote
• 9/16"
• Quick Disconnect Type
  Flat Face
• Rated Flow (GPM)
  10.60 GPM
• Sleeve Lock
  No
• Thread Gender
  Female
• Thread Size
  9/16-18
• Thread Type 1
  SAE ORB
• Valved
  No
• Working Pressure Maximum (psi)
  5,800 PSI
