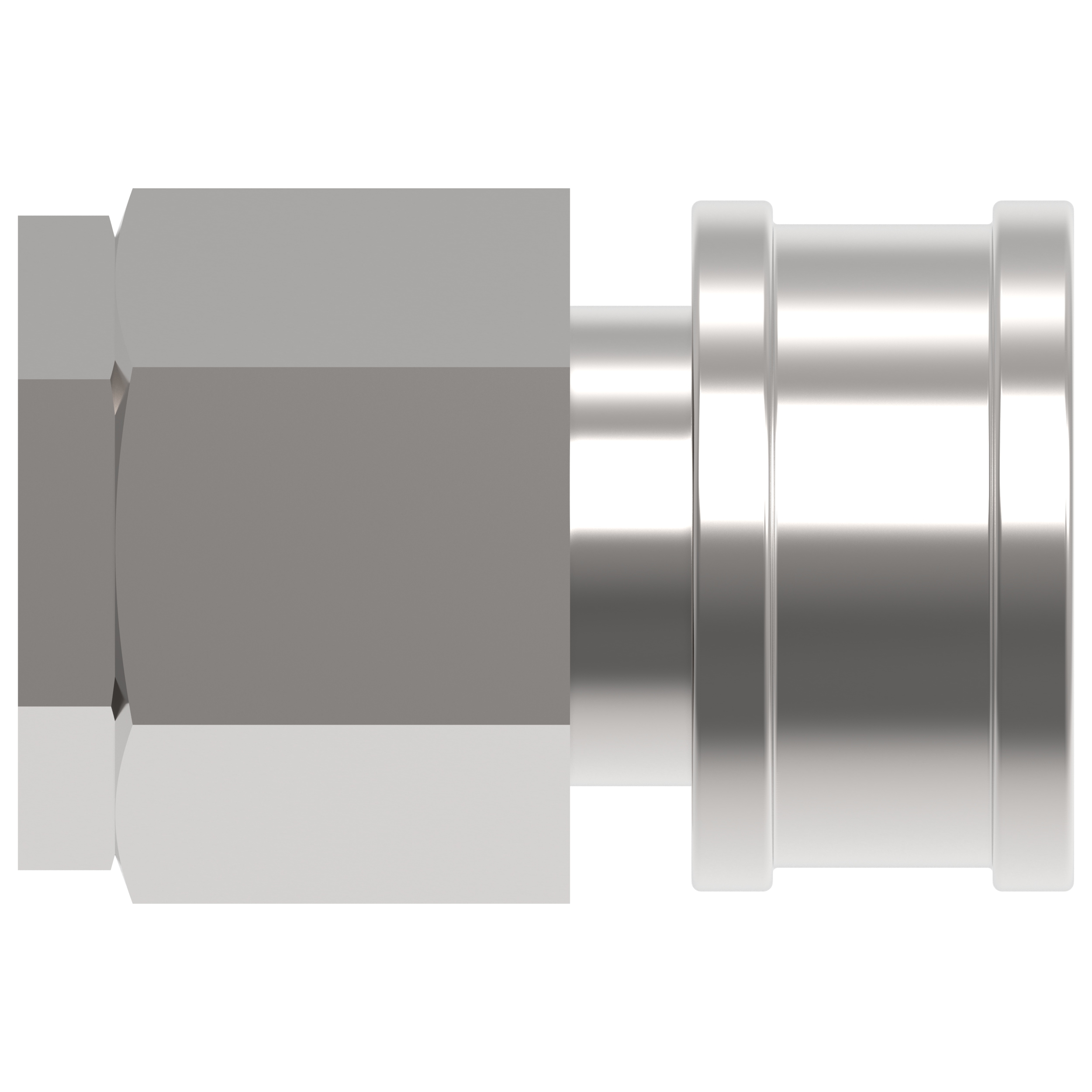

1-1/4-11 BSPP HK Series Push-to-connect Quick Disconnect

Item Specifications

• Air Inclusion
  48.00 cc. max.
• Body Size
  1-1/4"
• Body Type
  Socket
• Connect Under Pressure
  No
• Dimension A
  4.51"
• Dimension B
  2.73"
• Elastomer
  NBR
• Fluid Loss (ml-cc)
  48.00 cc. max.
• Hex
  2.38"
• ISO Type
  ISO 7241-1 B Interchange
• Material
  Steel
• Media
  Hydraulic
• Plating
  Zinc Trivalent
• 1-1/4"
• Quick Disconnect Type
  Ball Latch Poppet
• Rated Flow (GPM)
  76 GPM
• Sleeve Lock
  No
• Thread Gender
  Female
• Thread Size
  1-1/4-11
• Thread Type 1
  BSPP
• Valved
  Yes
• Working Pressure Maximum (psi)
  2,900 PSI
